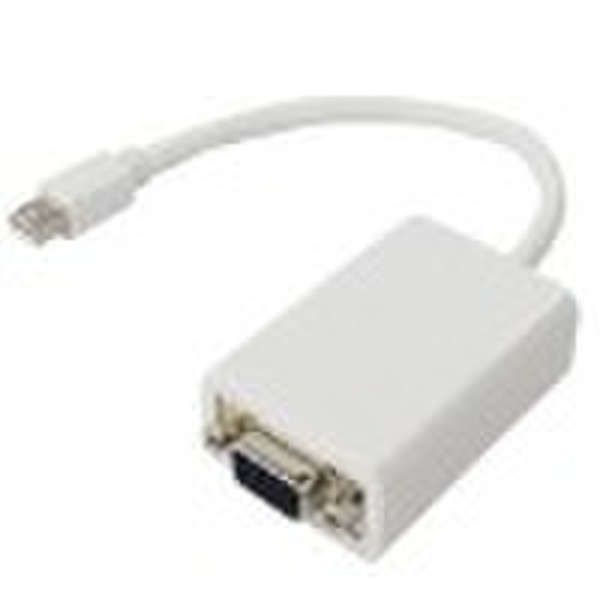

Mini DisplayPort to VGA Adapter Cable

The mini DisplayPort to VGA Adapter lets you connect a high definition monitor, projector, or LCD Display that uses a VGA connector or cable to a MacBook, MacBook Pro, or MacBook Air with a mini DisplayPort. Mini DisplayPort offers a unified, scalable, and cost effective interface for embedded and external display applications and is a great solution for digital entertainment center, projector factory, noisy space and security concerns, conference room presentation, school and corporate training environments Features 1, Mini DisplayPort 1.1a compliant receiver offering 5.4 Gbps bandwidth over 2 lanes 2, tegrated triple 10-bit, 162 MHz video DAC for analog VGA signal output 3, supports up to 1080p, 1920 x 1200 reduced blanking video resolution 4, Ultra- fast video image recovery. 5, ID pass-through from PC source to display 6, read Spectrum (de-spreading) for EMI reduction 7, automatic monitor plug and unplug detection 8, with power standby mode operation initiated based on sink detection status 9, powered from Mini DisplayPort source 10, 3V IO, 1.2V Core 11, power operation- Active 400mW, standby mode 15mW Note: For few display cards, the image would not appear until the PC enters into Windows from DOS at the time of restarting SPECIFICATIONS Signal Inputs/Output Maximum Single Link Range:1920X1200, 1080P Video format supported VGA:Max to1920x1200 Operating Frequency Vertical Frequency Range: 50/60Hz Video Amplifier Bandwidth: 162MHz Working Environmental Operating Temperature:0 °C to +70°C Operating Humidity:10% to 85 % RH (no condensation) Storage Temperature:-10°C to +80°C Storage Humidity:5% to 90 % RH (no condensation) Power Requirement:No external power needed
